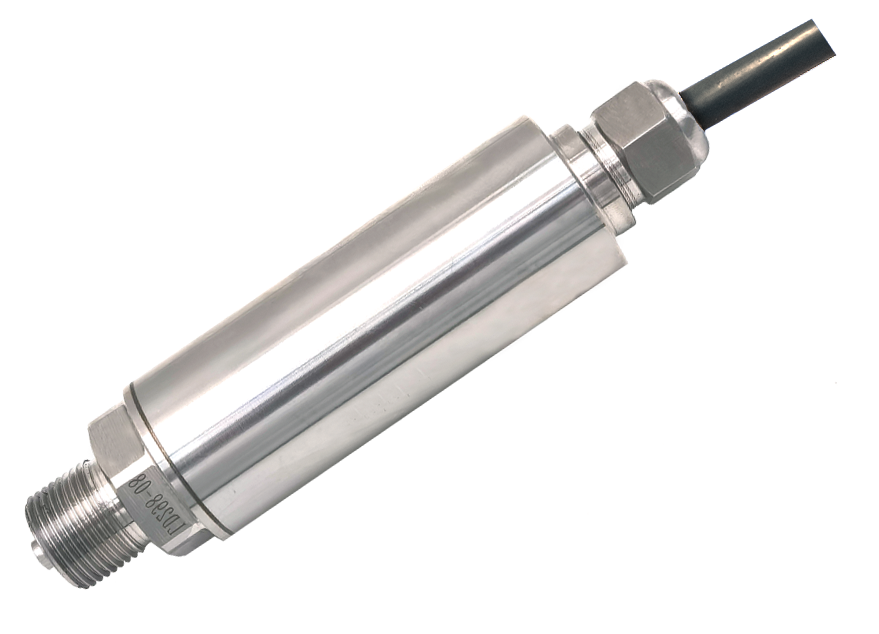

Product Features
- Adopts ion beam sputtering thin-film technology for high precision and excellent stability.
- All-stainless steel integrated structure (316 stainless steel), corrosion-resistant and durable.
- Fully laser-welded packaging ensures reliable sealing without welding stress, providing a long service life.
- Protected by imported German sealant, offering superior oil-proof, waterproof performance and excellent sealing.
- Suitable for pressure measurement and control of media in mining equipment such as hydraulic supports, hoists, emulsion pumps, and scraper conveyors.
- Built-in reverse polarity protection circuit prevents damage from incorrect wiring, ensuring safe and worry-free use.
Technical Specifications
| Parameter | Unit | Value |
|---|---|---|
| Measuring Range | MPa | 30 / 60 MPa |
| Total Error | %FS | ≤ 0.5 |
| Wiring System | / | 2-wire system / 3-wire system |
| Output Signal | mA / V | (4~20)mA / (0.5~4.5)V / (0.1~2.1)V / (0.25~2.25)V |
| Supply Voltage | VDC | 8~30 / 2.7~5 / 3~5 / 8~30 VDC |
| Operating Temperature | ℃ | -40 ~ +85℃ |
| Storage Temperature | ℃ | -40 ~ +85℃ |
| Insulation Resistance | MΩ @ V | > 100 MΩ (at 50VDC) |
| Housing Material | / | Stainless Steel |
| Electrical Connection | / | Mining Cable |
| Response Time | ms | 10 ms |
| Safe Overload | %FS | 150 |
| Protection Rating | / | IP66 |
